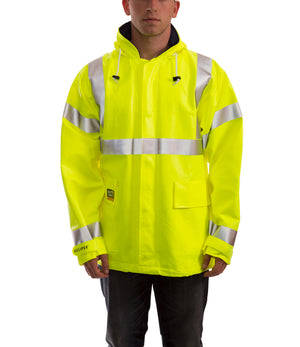

Eclipse Jacket

$203.04
J44122.SM
ITEM # J44122



Quad-Hazard® High Visibility, Liquidproof, Arc Flash and Flash Fire Protection


Revolutionary Quad-Hazard® technology delivers high visibility, liquidproof, arc flash and flash fire protection. Thermo-Grid® construction helps block out heat energy while the flame-resistant PVC coating on Nomex® provides 100% liquidproof protection in a soft, lightweight jacket.

Ideal Applications: Electric and Gas Utilities, Power Generation, Pipeline and Construction, T&D Petrochemical
Chemical Resistance: Many acids, oils, alcohols, salts and alkalies

● ANSI/ISEA 107 Type R Class 3 compliant jacket for high visibility
● Conforms to ASTM F1891 for Arc Thermal Performance and NFPA 70E
● Arc rating 8.7 cal/cm²
● Conforms to ASTM 2733 for Flash Fire Performance
● Average predicted total burn area < 9.5%
● Fluorescent yellow-green background material for excellent daytime visibility
● 2-inch silver reflective tape reflects light for 360° nighttime conspicuity
● Designed for complete freedom of movement while working overhead
● Therm-O-Rad sealed seams for 100% liquidproof protection
● Flame-resistant corduroy collar with a convenient roll-a-way hood
● Zipper storm fly front hides snap closures to seal out heat, wind, rain and contaminants
● Oversized 3 piece hood with adjustable hook & loop take-up strap for safe fit
● Non-conductive, non-corrosive hardware

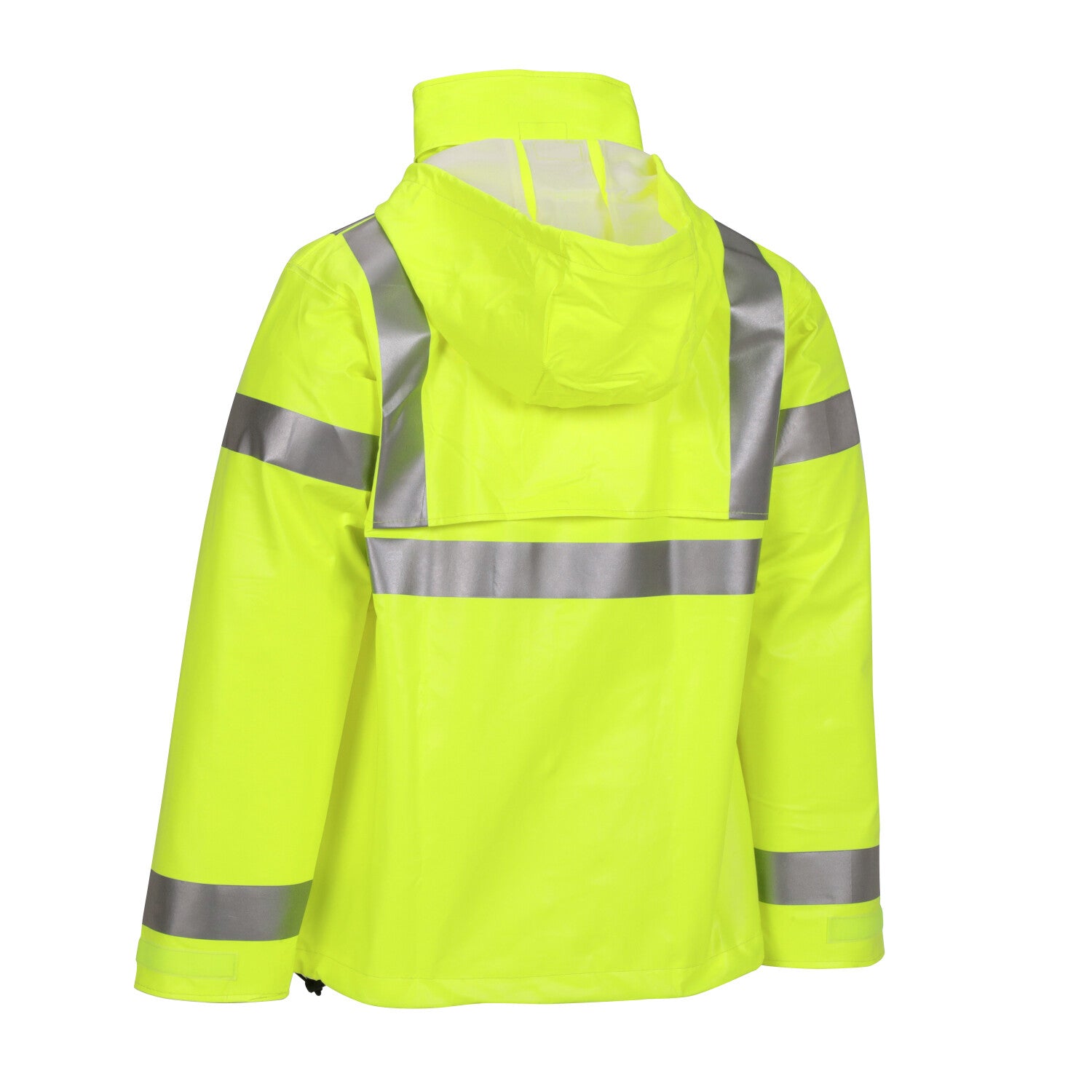

● Full-vented cape back for improved air circulation
● D-ring access for fall protection harness
● Hook and loop take-up straps on wrists for an adjustable fit
● Adjustable elastic drawcord for added protection



Winner of Frost & Sullivan 2016 Best Practices Award
North American Protective Clothing New Product Innovation Award



ANSI 107 Class 3 defines the highest level of visibility. Type R specifies Roadway and Temporary Traffic Zones.



ASTM F2733 specification covers the minimum performance criteria for flame resistance and other requirements for rainwear used by workers with the potential to be simultaneously exposed to wet weather conditions and either hydrocarbon or petrochemical industrial fires.



ASTM F1891 specification establishes applicable test methods, minimum physical and thermal performance criteria, a suggested sizing guide, and suggested purchasing information for rainwear for use by workers who may be exposed to thermal hazards of momentary electric arcs and open flames.




Quad-Hazard technology offers high visibility, liquidproof, arc flash and flash fire protection.




Nomex is a registered trademark for flame-resistant meta-aramid material.



Eclipse U.S. Patent No. 10,137,662

Chemical Data Sheet
Eclipse Sell Sheet
Eclipse Spec Sheet
